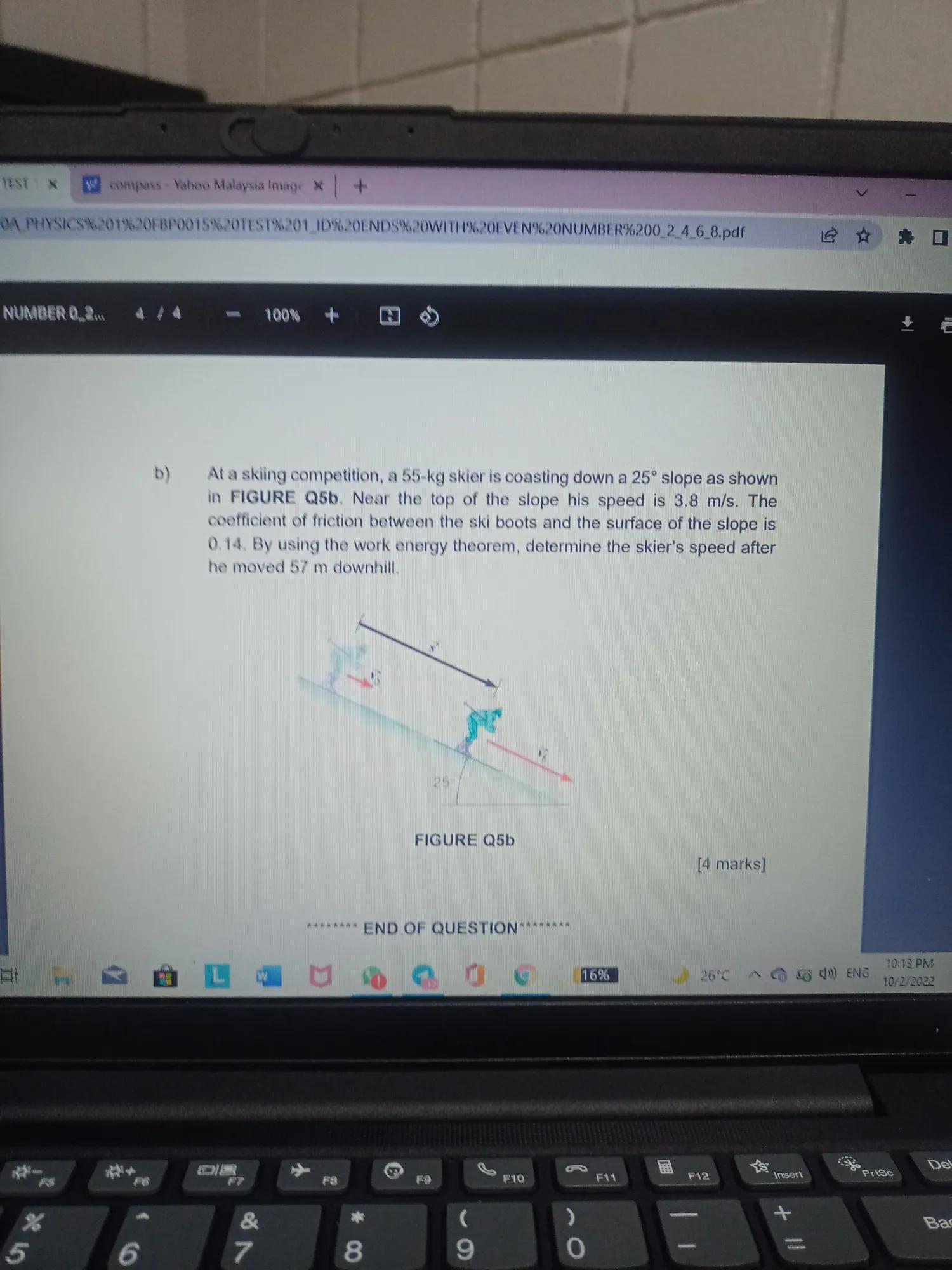

at skiing competition , a 55 kg skier is coasting down a 25° slope as shown in figure. near the top of the slope his speed is 3.8 m/s . the coefficient of friction between the ski boots and the surface of the slope is 0.14 . by using the work energy theorem , determine the skier's speed after he moved 57 m downhill
Answers
Given data:
* The mass of the skier is m = 55 kg.
* The angle of the slope is,
\(\theta=25^{\circ}\)* The initial velocity of the skier at the top is,
\(u=3.8\text{ m/s}\)* The coefficient of friction between the ski boot and slope is,
\(\mu=0.14\)* The distance traveled by the skier along the inclined plane is,
\(S=57\text{ m}\)Solution:

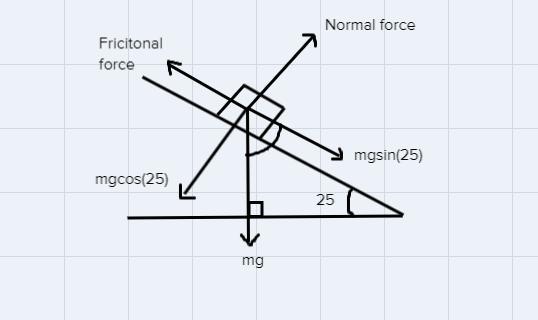

The diagrammatic representation of the given case is,
The angle of the inclined plane with the vertical axis is,
\(\begin{gathered} \alpha=180^{\circ}-90^{\circ}-\theta \\ \alpha=90^{\circ}-\theta \end{gathered}\)Thus, the component of the weight of skier along the inclined plane is,
\(\begin{gathered} F_1=mg\cos (90^{\circ}-\theta)_{} \\ F_1=mg\sin (\theta) \end{gathered}\)where g is the acceleration due to gravity,
Substituting the known values,
\(\begin{gathered} F_1=55\times9.8\times\sin (25^{\circ}) \\ F_1=227.79\text{ N} \end{gathered}\)The component of weight perpendicular to the inclined plane is,
\(\begin{gathered} F_2=mg\sin (90^{\circ}-\theta) \\ F_2=mg\cos (\theta) \end{gathered}\)Substituting the known values,
\(\begin{gathered} F_2=55\times9.8\times\cos (25^{\circ}) \\ F_2=488.5\text{ N} \end{gathered}\)From the diagram, the normal force acting on the skier is,
\(\begin{gathered} F_N=F_2 \\ F_N=488.5\text{ N} \end{gathered}\)The frictional force acting on the skier in terms of the normal force is,
\(\begin{gathered} F_r=\mu F_N \\ F_r=0.14\times488.5 \\ F_r=68.39\text{ N} \end{gathered}\)Thus, the net force acting on the skier down the inclined plane is,
\(\begin{gathered} F=F_1-F_r_{} \\ F=227.79-68.39 \\ F=159.4\text{ N} \end{gathered}\)According to Newton's second law, the acceleration of the skier is,
\(\begin{gathered} F=ma \\ a=\frac{F}{m} \\ a=\frac{159.4}{55} \\ a=2.9ms^{-2} \end{gathered}\)By the kinematics equation, the speed of the skier after moving to distance S is,
\(\begin{gathered} v^2-u^2=2aS \\ v^2-3.8^2=2\times2.9\times57 \\ v^2-14.44=330.6 \\ v^2=330.6+14.44 \end{gathered}\)By simplifying,
\(\begin{gathered} v^2=345.04 \\ v=18.6\text{ m/s} \end{gathered}\)Thus, the speed of the skier after moving 57 m downhill is 18.6 meters per second.
